Turbine Flow Meter
Compact T-Series

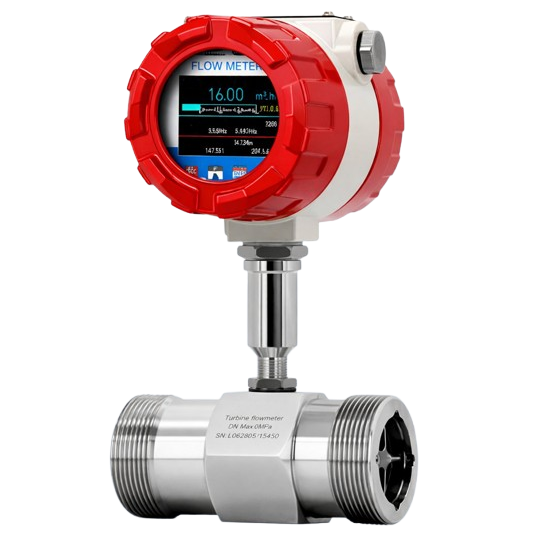

T400 Flow Meter

Color Screen

IP68 Sensor

Exd IIC T6 Gb

wide flow range

T400 turbine flow meter is based on the principle of torque balance and belongs to velocity-type flow measurement instruments. The sensor features a compact structure, high accuracy, good repeatability, fast response, and easy installation and maintenance.

FEATURES

High measurement accuracy with excellent repeatability
Wide turndown ratio up to 20:1
Fast response for dynamic flow measurement
Integrated color graphic display
Pulse, 4–20 mA, RS485 and optional HART outputs
Compact and robust stainless-steel construction
Threaded, flanged and sanitary clamp connections available
Wide temperature and pressure range options
Explosion-proof version available (Exd IIC T6 Gb)
IP65 protection for industrial environments

Pricing starts from:

£ 530

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices:

Quantity	Price
From 1 PCS:	£ 530
From 10 PCS:	5% Discount
From 20 PCS:	Please contact us

High measurement accuracy

±0.2% R

−20°C to +180°C

Oil & Gas Industry Measurement of refined petroleum products such as diesel, gasoline, kerosene, and light oils in transfer lines, dosing systems, and fuel distribution networks.
Chemical and Petrochemical Processes Flow monitoring of non-corrosive and mildly corrosive chemical liquids in production lines, batching systems, and process control applications.
Water Treatment and Utilities Measurement of clean water in water supply systems, filtration units, circulation lines, and cooling water systems.
Metallurgy and Manufacturing Monitoring of lubricants, hydraulic oils, and process fluids used in metal processing and industrial machinery.
Food and Beverage Industry (non-hygienic liquids) Measurement of liquid raw materials without fibers or solid particles, such as edible oils and other low-viscosity fluids (sanitary connection options available).
Energy and Power Systems Flow measurement of auxiliary liquids in power plants, boiler auxiliary systems, and cooling circuits.

Configure RockFord T400

Connection Type

Pipe Diameter

Process Connection

Tube Material

Rotor Material

Range Type

Pressure Rating

Signal output

Accuracy

Temperature Rating

Protection Grade

5-Point calibration

Material certification

Total

Additional information

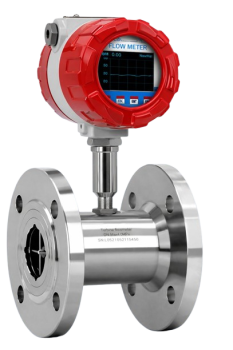

Connection Type:	External thread Type (DN15 – DN50) Flange Type (DN15 – DN200) Small diameter threaded Type (DN4 – DN10) Tri-Clamp Type (DN15 – DN100)
Pipe Diameter:	DN10 3/8” DN100 4” DN125 5” DN15 1/2" DN150 6” DN20 3/4" DN200 8” DN25 1” DN32 1 1/4” DN4 DN40 1 1/2” DN50 2” DN6 1/8” DN65 2 1/2” DN80 3”
Process Connection:	ANSI 150# ANSI 300# ANSI 600# JIS 10K JIS 20K JIS 40K NON-Flange Connection Type PN10 PN16 PN25 PN40
Tube Material:	PE S.S. 304 Flange S.S. 316 Flange
Rotor Material:	2Cr13 CD 4 MCU Duplex stainless steel Hastelloy C Monel Tantalum Titanium
Range Type:	Extended range Standard range
Power Supply:	DC power supply (12 to 42 Vdc)
Signal output:	4–20 mA Pulse RS485 (not selected for Tri-Clamp Type)
Accuracy:	± 0.2 % ± 0.5 % ± 1.0 % ± 1.5 %
Temperature Rating:	Temp. (-20 … +120 ⁰C) Temp. (-20 … +180 ⁰C) Temp. (-20 … +80 ⁰C)
