Electromagnetic Flow Meter
Compact F-Series

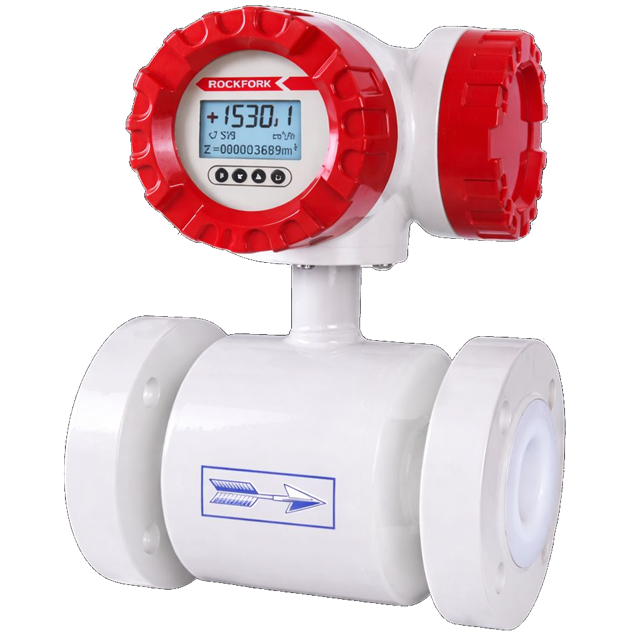

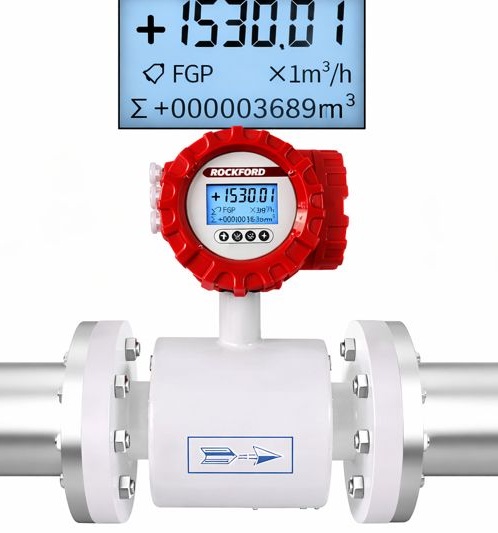

F800 Flow Meter

Name: F800 Flow Meter - ROCKFORD Measurement co. UK
SKU: f800
Price: 800 GBP
Availability: InStock

High accuracy

IP68 Sensor

Three electrodes

wide flow range

Magnetic flow meters provide obstruction free flow measurement and so are suitable for all conductive liquids including: chemicals, food stuffs, pulps, acids, pharmaceuticals, slurries and effluent. Their high accuracy is unaffected by changes in fluid viscosity, line pressure, temperature or density.

FEATURES

High accuracy & wide flow range measurement
999% pure copper for oil
No mechanically moving parts
IP68 Sensor (Remote version) maximum 3-meter immersion in water
Drinking water approvals including WRAS
Wide choice of materials for housing and flanges
Advanced electrode technology, no- drift zero point
Robust, fully welded and potted construction
In house wet calibration rig for all diameters (up to DN3000)
>3mm thickness PTFE liner, durable service life

Pricing starts from:

£ 800

Detailed information on prices and delivery times can be found in the Configurator.

Staggered Prices:

Quantity	Price
From 1 PCS:	£ 800
From 10 PCS:	5% Discount
From 20 PCS:	Please contact us

Bi-directional measurement

FDA approvals

Robust

Waster water industry: Transport networks, sewage treatment plants, sludges measurement
Chemical industry: Acids alkalis, dosing applications, abrasive or corrosive mediums
Metal & mining industry: Mediums with a high solid content, like ore or excavator mud
Water industry: Revenue metering, district metering water abstraction, leakage detection
Pulp & paper industry: Pulp, pastes, sludges & other caustic/abrasive mediums, liquors, additives, bleaches, colorants
Food & beverage industry: Mixing, dosing and filling of drinks under hygienic conditions filling Systems applications

Configure RockFord F800

Pipe Diameter

Process Connection

Flange

Housing

Liner

Power Supply

Signal output

Accuracy

Electrode Material

Grounding

OPTIONAL SPECIFICATIONS

warranty

5-Point calibration

Material certification

Max. Temp

Max. Process Pressure

Electrode

coil

Explosion Proof

Total

Additional information

Pipe Diameter:	DN10 3/8” DN100 4” DN1000 40” DN1050 42” DN1200 48” DN125 5” DN15 1/2" DN150 6” DN200 8” DN25 1” DN250 10” DN300 12” DN32 1 1/4” DN350 14” DN40 1 1/2” DN400 16” DN450 18” DN50 2” DN500 20” DN6 1/8” DN600 24” DN65 2 1/2” DN700 28” DN750 30” DN8 1/4” DN80 3” DN800 32” DN900 36”
Process Connection:	ANSI 150# ANSI 300# ANSI 600# JIS 10K JIS 20K JIS 40K PN10 PN16 PN25 PN40
Flange:	Carbon Steel (Standard) S.S. 304 Flange S.S. 316 Flange
Housing:	Aluminum Stainless Steel
Liner:	Chloroprene Rubber (Neoprene) (100-2000 mm 4"-80") PFA (10A-300 mm 3/8"A-12") Polyurethane (25-400 mm 1"-16") PTFE (25-2000 mm 1"-80")
Power Supply:	AC power supply (90 to 250 Vac 50/60 Hz) Battery Power Supply DC power supply (12 to 42 Vdc)
Signal output:	4–20 mA with digital HART protocol Alarm FOUNDATION Fieldbus Modbus RS-485 PROFIBUS DP PROFIBUS PA Pulse
Accuracy:	± 0.2 % ± 0.5 %
Electrode Material:	Hastelloy B Hastelloy C Platinum (DN15-DN2000) Stainless Steel 316L Tantalum Titanium Tungsten Carbide
Grounding:	Grounding & Protection Ring (Stainless Steel 316) Grounding Electrode (3 Electrodes) Grounding Ring (Stainless Steel 316) None
